BSP Male Elbow to Barb Adaptor for Flat Out Sullage Hose | (Your Van Has Female Threaded Grey Water Outlet)

Securely connect a Flat Out sullage hose directly to a female-threaded grey water outlet (such as shown in the main product photo) with one of these fittings. Each variant also contains an elbow to ensure downward/angled connection which is required for best flow with a flat hose. ^

1. Measure your pipe to determine the size you need.
2. Decide which sullage hose you intend to use (25 or 32mm).
3. Select the part that matches both below.

Available Kits:

• Female Threaded Pipe 1" (25mm) BSP to 25mm Barb [S23]:

  • use to connect to your 1" female threaded pipe to a Flat Out 25mm hose

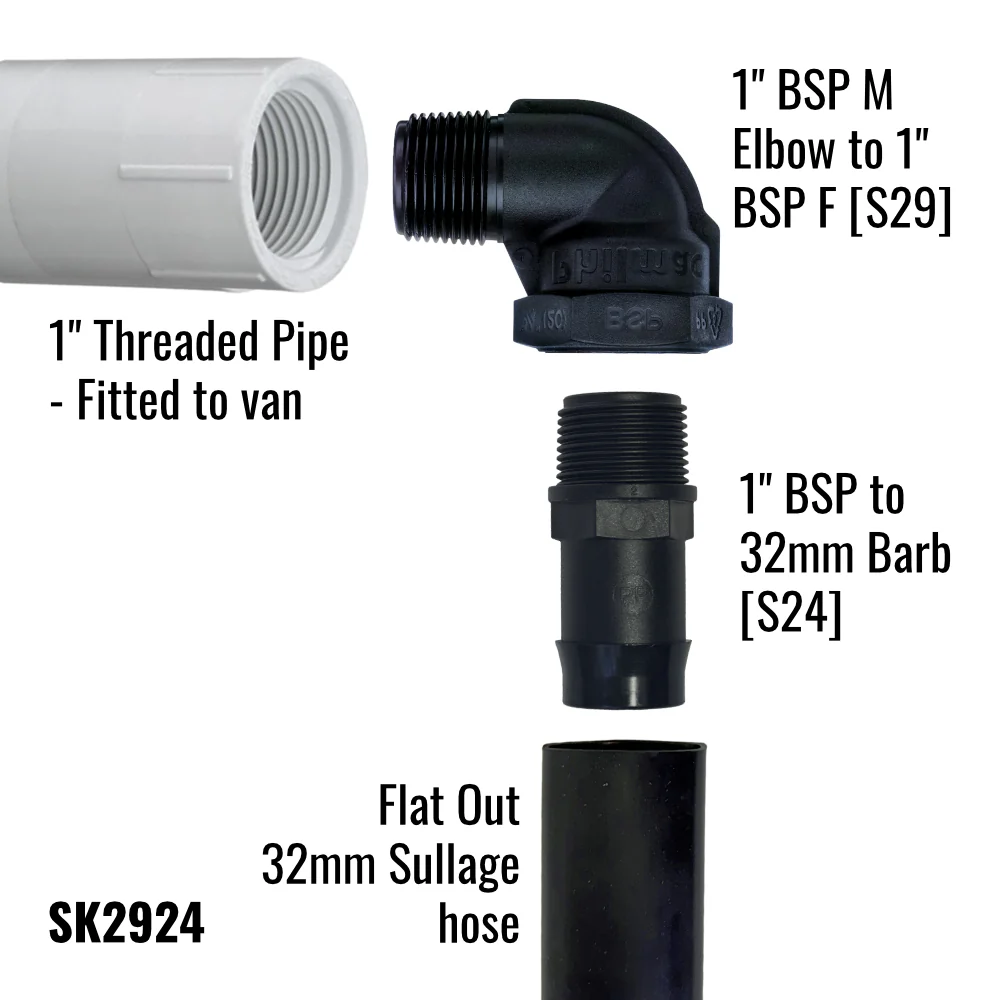

• Female Threaded Pipe 1" (25mm) BSP to 32mm Barb [SK2924]:

  • use to connect to your 1" female threaded pipe to a Flat Out 32mm hose
  • this set comes in components for self assembly [S29, S24]

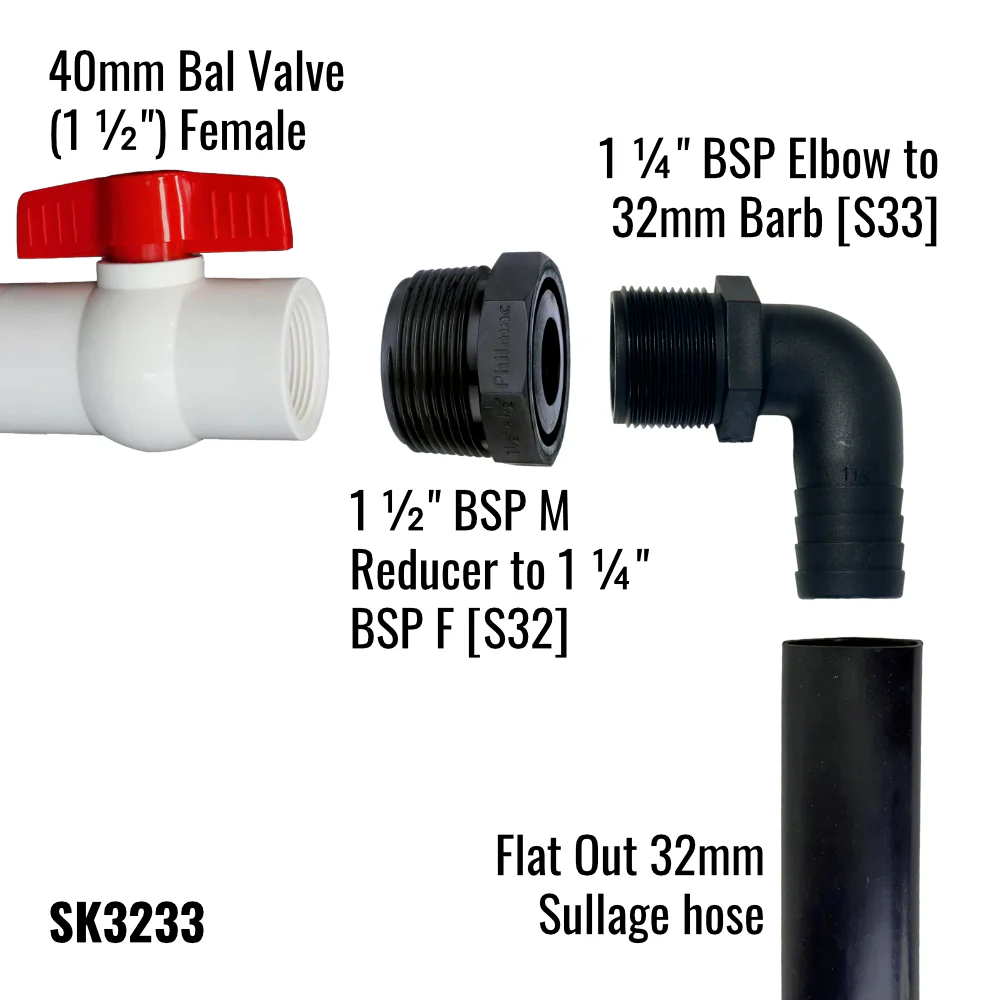

• Female Threaded Pipe 1 ½" (40mm) BSP to 32mm Barb [SK3233]:

  • use to connect to your 1 ½" female threaded pipe to a Flat Out 32mm hose

  • this set comes in components for self assembly [S32, S33]
• Female Threaded Pipe 1 ½" (40mm) BSP to 25mm Barb [SK3423]:

  • use to connect to your 1 ½" female threaded pipe to a Flat Out 25mm hose

  • this set comes in components for self assembly [S34, S23]

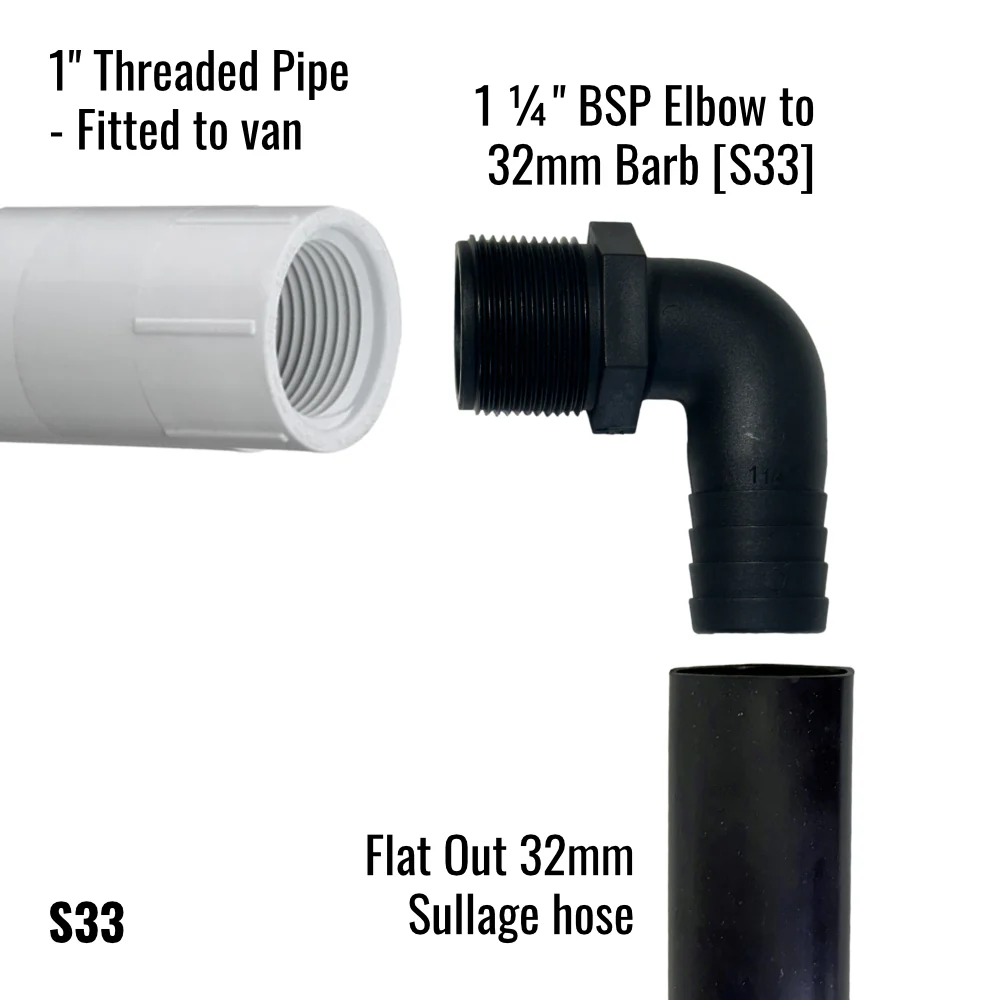

• Female Threaded Pipe 1 ¼" (32mm) BSP to 32mm Barb [S33]:

  • use to connect to your 1 ¼" female threaded pipe to a Flat Out 32mm hose

Have a size or fitting not pictured here? Please contact our team for further advice.
